AIR-COOLED / OUTDOOR PROCESS SYSTEMS
PRODUCT CATEGORY / 02 · AIR-SIDE HEAT REJECTION
Air Cooled Chiller for outdoor process cooling.
Select a self-contained chiller when the project needs air-side heat rejection without a cooling tower. Capacity, input power and available operating range are confirmed at the specified maximum outdoor dry-bulb temperature, chilled-water duty and installation conditions.
SITE-FIT DECISION STRIP
Is air-side heat rejection the right project route?
Use these four checks before comparing nominal capacity or unit price.
No cooling tower
Air-cooled units reject heat through fans and finned coils, removing the condenser-water loop, cooling tower and associated water-treatment scope.
Design dry-bulb temperature
Capacity and input power depend on the site maximum outdoor ambient condition. State the project design ambient before comparing models.
Outdoor airflow clearance
Roof or ground location, intake and discharge clearance, recirculation risk, service access and sound constraints must be reviewed before placement.
Packaged chilled-water scope
Pumps, buffer tank, glycol protection, valves and controls are confirmed from the required chilled-water loop and installation scope.
AIR-COOLED MANUFACTURER OVERVIEW
One package. No condenser-water loop.
GESON supplies air-cooled screw, scroll and packaged chiller configurations for industrial process cooling and commercial HVAC projects. The configuration is selected around the required duty, outlet temperature, installation environment and project scope.
Air-cooled heat rejection can simplify the site arrangement where a cooling tower and condenser-water circuit are not preferred. The final unit must still be reviewed for maximum ambient temperature, airflow clearance, sound, chilled-water loop and electrical supply.
Review air chiller selection dataCONFIGURATION PATHWAYS
Choose the air-cooled configuration that fits the duty.
These are starting points for a technical review, not universal performance promises. Final capacity, refrigerant, sound and operating limits are confirmed for the stated project conditions.
2–100 RT

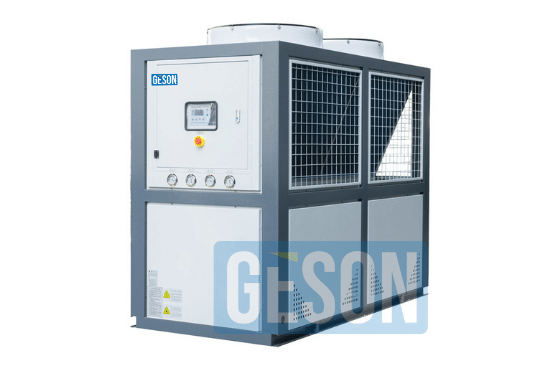

Air-cooled scroll
A compact multi-compressor route for smaller industrial loads, laser cooling, plastics and distributed process applications.
Best reviewed for stable or staged smaller-duty loads.Explore configuration ↗
50–300 RT

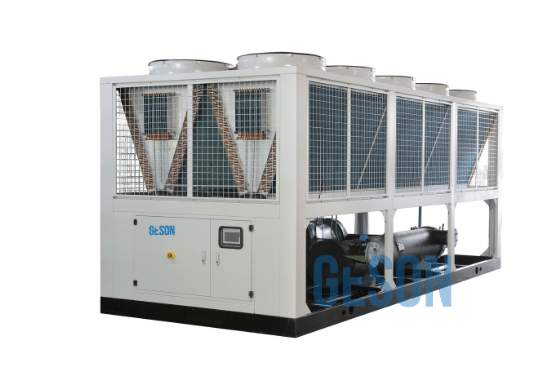

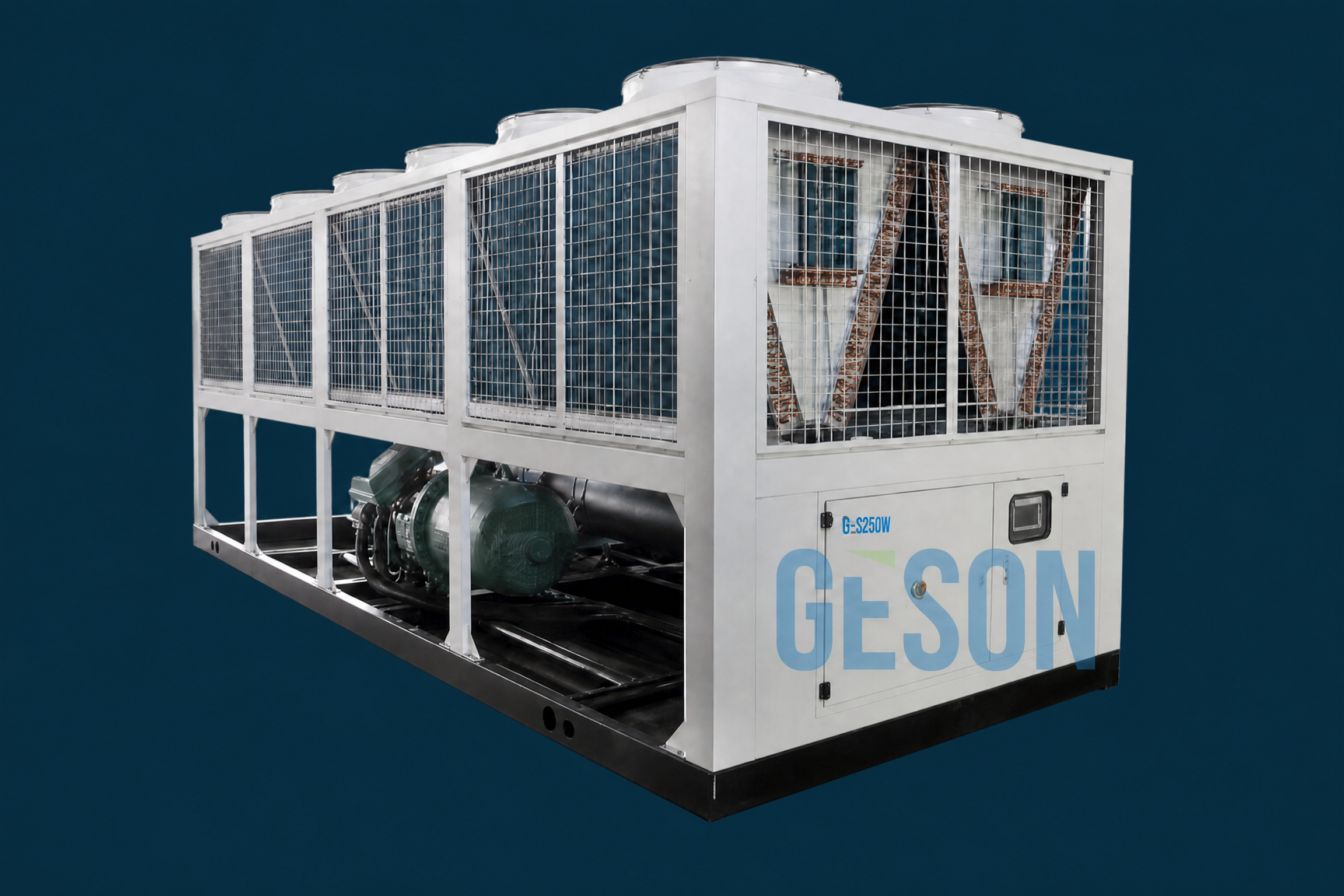

Air-cooled screw
A large-load air-side configuration for continuous industrial process cooling, food production, central HVAC and project-specific packages.
Best reviewed for larger loads, ambient conditions and part-load strategy.Explore configuration ↗
Project-specific

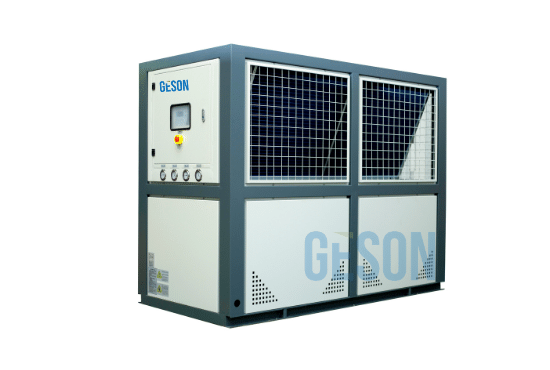

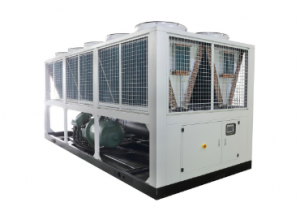

Packaged air system
A coordinated supply scope for applications that require the chiller, pumps, tank and controls to be reviewed as one installation package.
Best reviewed where on-site work, footprint and commissioning coordination matter.Explore configuration ↗OUTDOOR INSTALLATION PATH
Four checks before the unit reaches site.
Air-cooled chillers simplify heat rejection, but they still need the right ambient data, airflow clearance and chilled-water package scope.
- 01
Map the heat-rejection environment
Confirm the maximum design ambient, altitude, nearby exhaust air, sun exposure, dust and seasonal operating pattern.
- 02
Plan equipment placement
Reserve roof or ground loading, lifting access, air intake and discharge clearances, drainage and maintenance space.
- 03
Define the chilled-water package
State water or glycol, supply and return temperatures, design flow, pump head, buffer requirement and freeze-protection approach.
- 04
Confirm the selected operating point
Review the final model’s capacity, input power, sound, refrigerant, electrical supply and accessory scope in the technical submittal.
SELECTION DOSSIER
Air cooled chiller information for a defensible selection.
Capacity, chilled-water temperature, refrigerant, compressor, ambient conditions, condenser and installation requirements should be reviewed at the same defined operating point.
01
GESON Air Cooled Chiller — Complete Buyer’s Guide
Geson manufactures air cooled chillers from 2RT to 300RT for industrial process cooling and commercial HVAC applications. Available in scroll compressor configurations (2RT–100RT) and screw compressor configurations (50RT–300RT). All units factory pressure-tested and run-tested before delivery. Lead time: 30 working days.
ParameterSpecification
Cooling capacity range2RT to 300RT (7kW to 1,050kW)
Chilled water supply temperatureStandard: 5°C to 25°C | Low temp: −15°C to 0°C
Standard chilled water in/out12°C / 7°C (customisable)
Refrigerants availableRefrigerant options depend on the selected compressor, capacity, leaving-fluid temperature, safety requirements and destination-market regulations
Compressor brandsCopeland, Hanbell, Bitzer, Danfoss, Invotech, FUSHENG
Voltage options3P-380V-50Hz | 3P-400V-50Hz | 3P-440V-50Hz | 3P-460V-60Hz | custom
Condenser typeAir-cooled fin and tube — copper tubes, aluminium fins
Evaporator typeShell and tube — copper tubes standard; SS316L tubes optional
Control systemController, display and communication options are confirmed in the model-specific technical submittal
Energy adjustmentCapacity-control method depends on compressor configuration; confirm staging or variable-speed options in the technical submittal
Ambient temperature rangeOperating ambient limits are model-specific; provide the project design and maximum ambient temperature for selection
InstallationOutdoor or well-ventilated indoor space — no cooling tower required
Lead timeConfirmed with the approved model, customization scope and order schedule
02
Air Cooled Chiller Product Range
GS-AS Series (Air-cooled Scroll)Copeland / Danfoss / Invotech scroll | 2RT – 100RT (7kW – 350kW) | Plastics, laser cooling, hydroponics, small HVAC, process cooling
GS-AD Series (Air-cooled Screw)Hanbell / Bitzer / FUSHENG screw | 50RT – 300RT (175kW – 1,050kW) | Large industrial process cooling, food processing, HVAC central plant, oil & gas
GS-AFL Series (Air-cooled Box)Scroll compressors, compact box design | 10RT – 100RT | Outdoor installation, remote sites, easy transport
Top quality screw compressor
The source page specifies famous-brand semi-hermetic screw compressors, R134A/R407C/R410A/R510A options and approved compressor platforms for the selected model.
Reliable microcomputer control
PLC and LCD control options can monitor outlet temperature and operating conditions, record alarms, support remote control and reserve RS-485 or Ethernet communication.
Shell-and-tube evaporator
The source content highlights low maintenance, convenient cleaning, fast heat exchange and copper-tube construction for the selected air-cooled chiller.
Brand refrigeration components
Expansion valves and filter driers are selected with the refrigeration circuit to support stable operation of the industrial air-cooled chiller unit.
Industrial electrical components
A.C. contactors, relays, thermal protectors and pressure controllers are specified for reliable unit operation and project requirements.
Copper-tube aluminium-fin condenser
The air-cooled condenser uses copper tubes and aluminium fins to support heat transfer and stable air-side heat rejection without a cooling tower.
MANUFACTURER REVIEW
Your top quality air cooled chiller manufacturer.
Geson manufactures air cooled chillers from 2RT to 300RT for industrial process cooling and commercial HVAC applications. Available in scroll compressor configurations (2RT–100RT) and screw compressor configurations (50RT–300RT). All units factory pressure-tested and run-tested before delivery. Lead time: 30 working days.
Professional project review
GESON states that its experienced engineering team supports model selection and project-specific cooling solutions.
Standardized production management
Quality-control points are retained from the source content and applied to the manufacturing and pre-delivery review.
Strict testing before shipment
The original page specifies process inspection, manufacturing inspection, quality inspection, operating testing and pre-delivery inspection.
Support after installation
Share the capacity, fluid, temperature, refrigerant, voltage and ambient conditions so the factory can support the final scope.
APPLICATION FIT
Air cooled process cooling for industrial and HVAC loads.
ORIGINAL PRODUCT VIDEO
See GESON air cooled chillers in operation.
This original GESON product video is retained from the WordPress page as an independent visual reference for air-cooled chiller configurations.
AIR OR WATER COOLED
Compare heat-rejection arrangements before specifying the chiller.
Selection must be based on the complete rated operating point, site infrastructure, ambient conditions, water treatment scope and total installed system.
FactorAir Cooled ChillerWater Cooled Chiller
InstallationNo condenser-water loop or cooling tower; chilled-water pumps and accessories remain project-specific.Requires an external condenser-water heat-rejection system and condenser-water pump.
Water consumptionNo evaporative condenser-water consumption; the closed chilled-water loop still requires filling and maintenance.Evaporative towers use makeup water and require blowdown; other heat-rejection arrangements differ.
Outdoor installationCommonly installed outdoors with required service clearances and airflow.Chiller and heat-rejection equipment locations depend on the selected system design.
MaintenanceNo condenser-water treatment, but coils, fans, refrigerant circuit and chilled-water loop still require maintenance.Open-tower systems require condenser-water treatment and tower maintenance.
Selection basisCapacity and efficiency depend on outdoor dry-bulb temperature; verify the model operating map.Performance depends on entering condenser-water temperature and the selected heat-rejection system.
ORIGINAL PROJECT REFERENCES
Selected air cooled chiller supply references.
These project records are retained from the original product page. Final project selection always depends on the agreed operating conditions and written scope.
YearCountryIndustrySystem supplied
2026PortugalEssential oil distillation2 × air cooled screw chiller 530kW/151RT each, circulation pumps + 10m³ insulated tank, skid-mounted system.
2025ItalyIndustrial process coolingAir cooled screw chiller 800kW/227RT, Hanbell compressor, 125 external circulation pump + 10m³ insulated tank.
2025MadagascarIndustrial process coolingAir cooled screw chiller 700kW/199RT + 5,000L insulated water tank.
2025IrelandFood industryAir cooled screw chiller 320kW/91RT, R134A, 3P-400V-50Hz, variable frequency drive.
2024Vietnam / Sri LankaIndustrial process coolingAir cooled screw chiller 195kW/55RT.
2024AzerbaijanOil & gas industryAir cooled box chiller 65.4kW/18.6RT.
2020RussiaPlastics extrusionAir cooled scroll chiller 65.4kW/18.6RT, R22, 3P-380V-50Hz, for an 800kg/h extrusion machine.
All listed projects were supplied with factory test records, operation manuals and spare-parts documentation. Remote commissioning support and technical assistance remain subject to the selected service scope.
SELECTION FAQ
Questions buyers ask before specifying an air cooled chiller.
Answers are based on the current GESON Air Cooled Chiller content and should be confirmed against the final model-specific selection.
01What is the price of an air cooled chiller?+
Air cooled chiller pricing depends on cooling capacity, compressor type, refrigerant, and any special requirements. Air cooled chillers are generally less expensive than water cooled chillers of the same capacity due to the simpler system — no cooling tower or condenser pump is needed. Contact Geson with your design conditions for model selection, technical review and quotation.
02What compressor brands does Geson use in air cooled chillers?+
Geson air cooled chillers use Copeland, Hanbell, Bitzer, Danfoss, Invotech, and FUSHENG compressors depending on capacity and application. Copeland and Danfoss scroll compressors are used in smaller units (2RT–100RT); Hanbell and Bitzer screw compressors are used in larger units (50RT–300RT).
03Do air cooled chillers need a cooling tower?+
No. Air cooled chillers reject heat directly to the outdoor air via the condenser fan — no cooling tower, no condenser water pump, and no water treatment system is needed. This makes installation simpler and significantly reduces upfront cost compared to water cooled systems.
04What is the maximum ambient temperature for a Geson air cooled chiller?+
Standard Geson air cooled chillers are designed for ambient temperatures up to 43°C. A high-ambient design is available for installations in climates up to 50°C — this requires a specially configured condenser and fan system. Always specify your maximum ambient temperature when requesting a quotation, particularly for Middle East, North Africa, and Southeast Asia installations.
05What refrigerants are available?+
Available refrigerants depend on the selected compressor, capacity, leaving-fluid temperature, safety code and destination-market regulations. Do not treat one refrigerant as a universal replacement for another. Include the installation country and required design conditions in the inquiry so the factory can confirm a compliant option.
06What is the lead time for a Geson air cooled chiller?+
Standard configurations: 30 working days. Custom configurations or units requiring special components: 45–60 working days. Delivery by sea to most ports worldwide; wooden case packaging with transportation insurance included.
07Can Geson supply a complete system with pumps and tank?+
Yes. Geson supplies complete air cooled chiller packages including the chiller unit, chilled water pump(s), insulated buffer tank, Y-strainers, isolation valves, and integrated electrical control panel — skid-mounted and factory-tested as a complete system. This is popular for customers who want to minimise on-site installation work.
08What is the difference between an air cooled scroll chiller and screw chiller?+
Scroll chillers (2RT–100RT) use multiple scroll compressors in tandem — simpler, quieter, and easier to maintain, ideal for smaller applications with stable loads. Screw chillers (50RT–300RT) use twin-screw compressors with stepless capacity modulation via variable frequency drive, delivering better part-load efficiency for larger applications with variable cooling demand.
09What is the minimum order quantity?+
MOQ is one unit. You can order a single chiller or any quantity required.
MODEL-SPECIFIC PROPOSAL
Share your operating point with the GESON engineering team.
Send the following information for a model-specific air cooled chiller quotation.
- Cooling capacity required — kW or RT
- Chilled-water supply and return temperatures — e.g. 7°C/12°C
- Maximum outdoor ambient temperature at the installation site
- Power supply — voltage, frequency and phases
- Application or equipment served by the chiller
- Special requirements — food grade, low temperature, VFD or specific refrigerant
